| Dimensions Printing Module | 2280x2352x1610 cm & Weight: 1000 kg |
|---|---|
| Dimensions Lamination Module | 1600x2370x1450 cm & Weight: 1100 kg |
| Power Consuption Printing Module | 3,5kW - 230V AC - 15A - 50Hz |
| Power Consuption Lamination Module | 10kW - 400V AC - 14,5A - 50Hz |
| Operation environment | Operation: 20oC/68oF to 30oC/86oF (25oC/77oF Recommended); Humidity: 22 to 80% RH (non-condensing) |
| Platform | Embedded controller & QA chips |
| Ink Delivery System with intermediary reservoirs | |
| Modular, multi-functional maintenance stations | |
| Large service door & Easy ink tank access | |

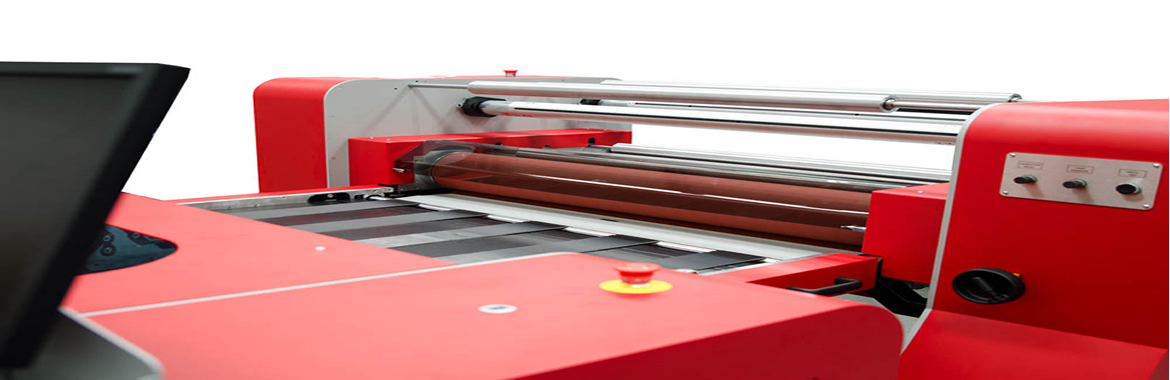

| Lamination Module | Speed Up to 18m/min |
| Hot & Cold Lamination | |
| Adjustable Gap between lamination rolls | |
| Possibility to set in-line the lamination module with the printing module | |
| Interface | Unique and user-friendly software |
